Outlet: Cooler Master MWE Bronze 550 V3 - 550 W
- 550 Watt
- Non Modular
- 80 Plus Bronze
- 120 mm fan
- ATX version 3.1
This is an outlet-product:
New condition. No signs of use.
New condition. No signs of use.
50.99
41.46 excl. VAT
Only one in stock, expected delivery: 4 - 5 working days
Outlet: Cooler Master MWE Bronze 550 V3 - 550 W
50.99
41.46 excl. VAT
Only one in stock, expected delivery: 4 - 5 working days
- Wide range of IT related products
- Low prices
- Fast and reliable delivery
- Order now, expected delivery: 4 - 5 working days
Pay later or
in 3 payments of € 17.00
in 3 payments of € 17.00

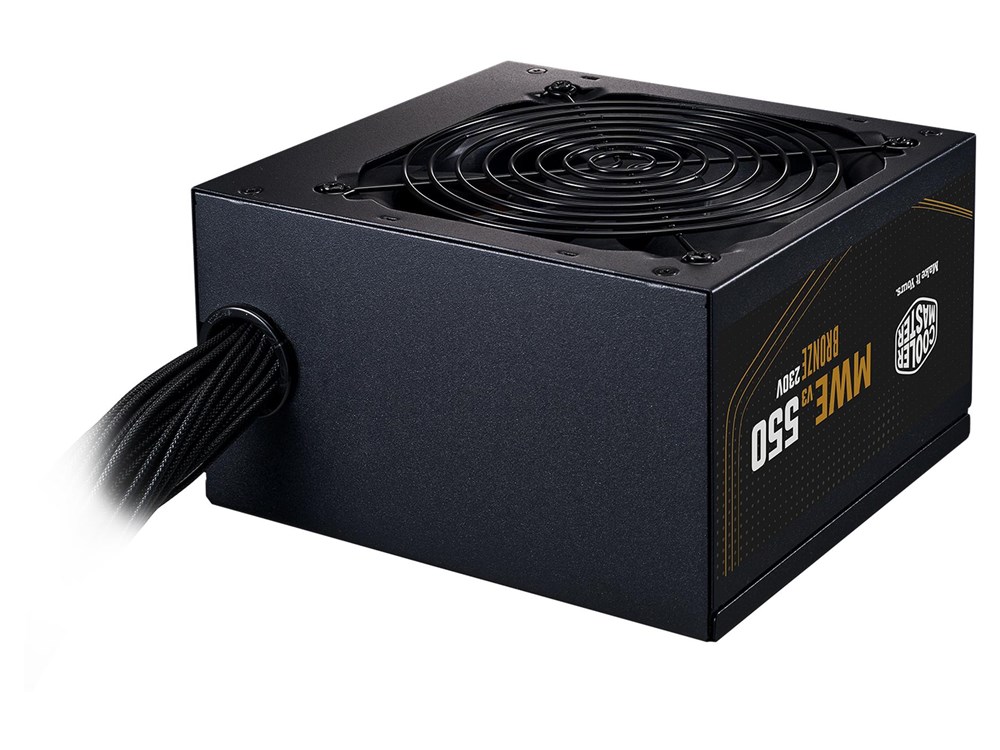

The Cooler Master MWE Bronze 550 V3 is a reliable 550W power supply unit designed for PC builds that demand stable and efficient power delivery. Compliant with ATX version 3.1 and carrying an 80 PLUS Bronze certification, this unit achieves up to 88% efficiency, helping to reduce energy waste and keep operating costs in check. With a combined +12V output of 540W and a max output current of 45A on the +12V rail, it is well suited for a wide range of mainstream desktop systems. The unit operates on an input voltage range of 200 to 240V and supports input frequencies of 50 or 60 Hz. It has a compact form factor measuring 150 x 86 x 140 mm and weighs 1450 grams.
Active Cooling and Power Protection
The MWE Bronze 550 V3 features active cooling through a single 120mm HDB fan, which provides a good balance between airflow and noise levels. Active Power Factor Correction helps maintain a stable power factor, contributing to consistent performance. The unit also incorporates multiple protection mechanisms including over power, over voltage, under voltage, and short circuit protection, all working together to help safeguard connected components.
Connectivity and Cable Management
Using a non-modular cabling design, this power supply comes with a fixed set of connectors including a 24-pin ATX motherboard connector, two 6+2 pin PCIe connectors, six SATA power connectors, and three Molex connectors. This setup provides ample connectivity for standard PC configurations without the need for additional cable management solutions.
Active Cooling and Power Protection
The MWE Bronze 550 V3 features active cooling through a single 120mm HDB fan, which provides a good balance between airflow and noise levels. Active Power Factor Correction helps maintain a stable power factor, contributing to consistent performance. The unit also incorporates multiple protection mechanisms including over power, over voltage, under voltage, and short circuit protection, all working together to help safeguard connected components.
Connectivity and Cable Management
Using a non-modular cabling design, this power supply comes with a fixed set of connectors including a 24-pin ATX motherboard connector, two 6+2 pin PCIe connectors, six SATA power connectors, and three Molex connectors. This setup provides ample connectivity for standard PC configurations without the need for additional cable management solutions.
Brand:
Cooler Master
Product number:
80071586
Product number manufacturer:
MPE-5501-ACABW-3BEU
Certificates
80 PLUS certification:
80 PLUS Bronze
Connectivity
ATX Power connector (24-pin):
Cabling type:
Non-Modular
Molex power connectors:
3
Motherboard power connector:
24-pin ATX
PCI Express power connectors (6+2 pin):
2
SATA power connectors:
6
Cooling
Cooling type:
Active
Fan diameter:
12 cm
Energy management
Combined power (+12V):
540 W
Combined power (+3.3V):
110 W
Combined power (+5V):
110 W
Combined power (+5Vsb):
15 W
Combined power (-12V):
3.6 W
Efficiency:
88%
Hold time:
16 ms
Input current:
5 A
Input frequency:
50/60 Hz
Input voltage:
200 - 240 V
Max output current (+12V):
45 A
Max output current (+3.3V):
17 A
Max output current (+5Vsb):
3 A
Max output current (-12V):
0.3 A
Power Factor Correction (PFC) type:
Active
Wattage:
550 W
Environmental conditions
Operating temperature range (T-T):
0 - 40 °C
Physical characteristics
Colour of product:
Black
Depth:
140 mm
Height:
86 mm
Weight:
1.45 kg
Width:
150 mm
Technical details
ATX version:
3.1
Bearing technology:
HDB
Mean time between failures (MTBF):
100000 h
Purpose:
PC
