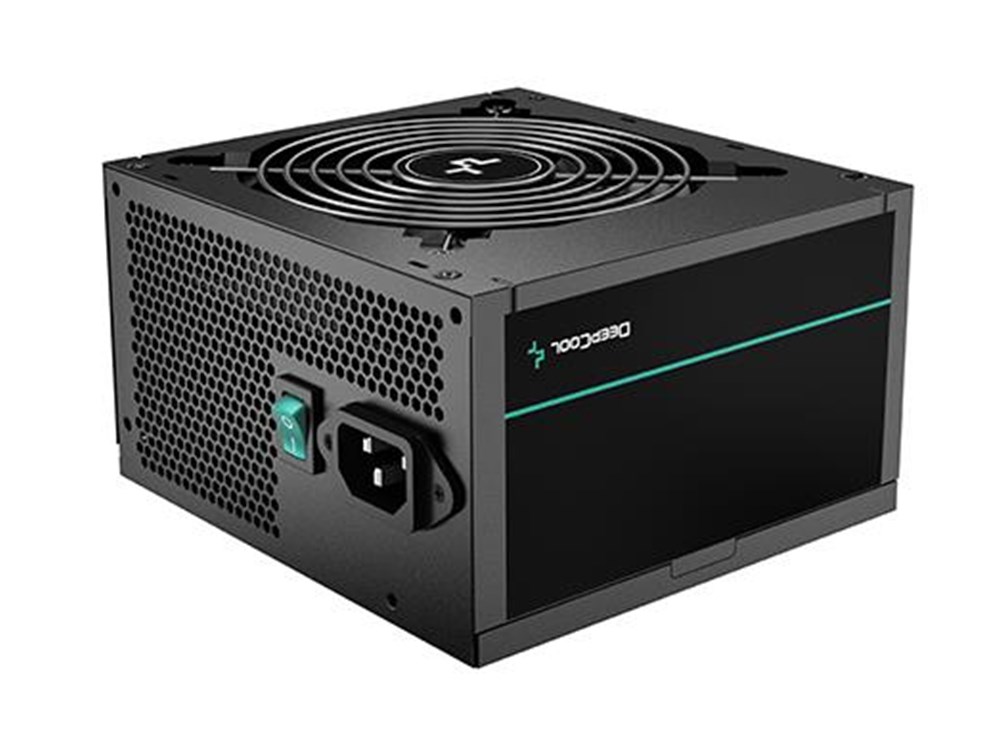

PM850D DeepCool PM850D Series non-modular power supplies are certified 80 PLUS Gold for efficient power delivery with great performance at a great value.
80 PLUS GOLD CERTIFIED Guarantees a minimum efficiency of 90% or higher under typical loads for reliable power delivery with little waste.
QUALITY TOPOLOGY For solid power performance and minimal signal noise, the PM-D series PSU features a full-bridge LLC topology with DC-DC conversion and Japanese bulk capacitors that delivers terrific reliability.
BUILT TO SPEC Made to meet modern power supply design standards for consistent voltage stability, each PM-D power supply is also compliant with Intel PSU guidelines that support instant-on power from sleep or standby modes.
ENOUGH POWER TO GO AROUND The PM850D features three independent PCIe outputs and two EPS connectors for continuous high quality power that supports the latest high-end graphics cards and motherboards for gaming excellence.
EFFICIENCY THROUGHOUT The PM-D series power supplies are compliant with the 2014 ErP regulations on energy savings and also the IEC 62368-1 for safety standards.
PEACE OF MIND Safeguard your power source with well-round circuit protection including OPP/OVP/SCP/OTP/OCP.
Specifications
Brand:
DeepCool
Product number:
80065878
Product number manufacturer:
R-PM850D-FA0B-EU
Certificates
80 PLUS certification:
80 PLUS Gold
Connectivity
ATX power connector (20+4 pin):
Molex power connectors:
1
Motherboard power connector:
20+4 pin ATX
PCI Express power connectors (6+2 pin):
3
SATA power connectors:
2
Cooling
Cooling type:
Active
Fan diameter:
12 cm
Energy management
Combined power (+12V):
846 W
Combined power (+3.3V):
110 W
Combined power (+5V):
110 W
Combined power (+5Vsb):
15 W
Combined power (-12V):
3.6 W
Efficiency:
90%
Hold time:
16 ms
Input current:
10 A
Input frequency:
47 - 63 Hz
Input voltage:
100 - 240 V
Max output current (+12V):
70.5 A
Max output current (+3.3V):
20 A
Max output current (+5V):
20 A
Max output current (+5Vsb):
3 A
Max output current (-12V):
0.3 A
Power Factor Correction (PFC) type:
Active
Power protection features:
Over current, Over power, Over voltage, Short circuit
