Home Gigabyte B650M D3HP

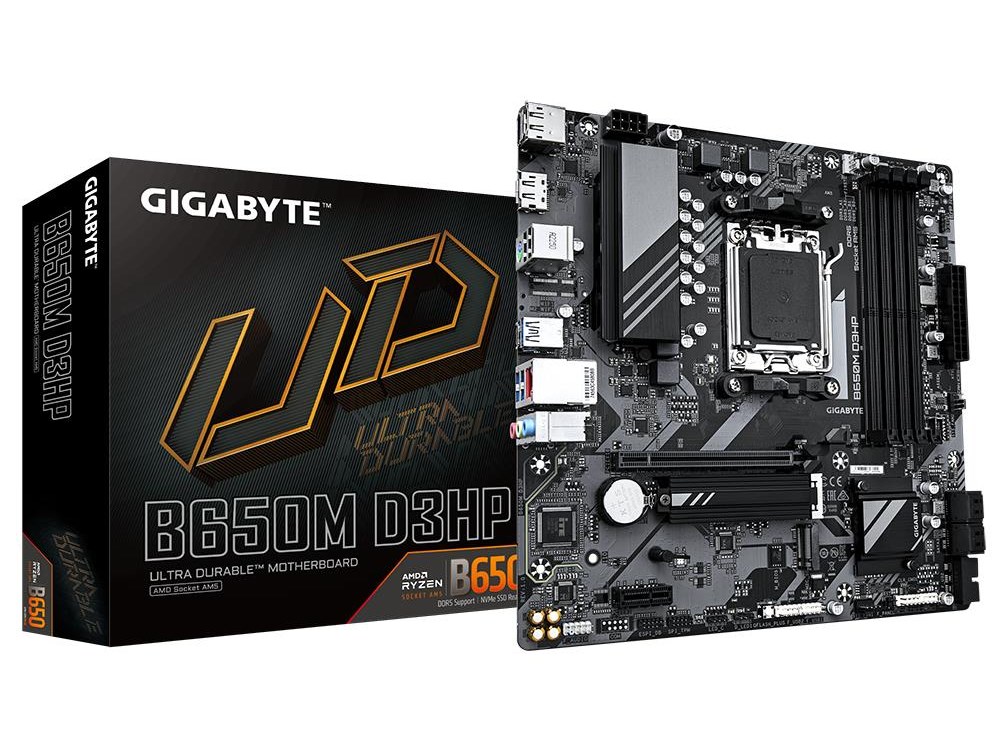

Gigabyte B650M D3HP

Gigabyte B650M D3HP
  • Socket AM5
  • AMD B650 chipset
  • Micro-ATX format
  • 4x DDR5 memory slots

106.98 excl. VAT
131.58
 In stock, expected delivery: 4 - 5 working days
  • Wide range of IT related products
  • Low prices
  • Cheap shipping over €400
Klarna pay later and in 3 payments available

Information

Discover the power and versatility of the Gigabyte B650M D3HP motherboard, designed for the demanding user seeking top performance and advanced functionality. Built for AMD processors, this motherboard supports a wide range of powerful CPUs, including the AMD Ryzen™ 5, 7th Generation Ryzen 7 and 7th Generation Ryzen 9, all compatible with Socket AM5.

The Gigabyte B650M D3HP motherboard features four DIMM slots for DDR5-SDRAM, allowing you to install an impressive maximum internal memory of 192 GB. This ensures unmatched speed and efficiency when multitasking and heavy applications.

With support for various storage interfaces such as M.2, PCI Express 4.0 and SATA III, this motherboard offers flexibility and speed for both HDDs and SSDs. In addition, it supports RAID configurations 0, 1 and 10, providing additional options for data protection and performance optimization.

For graphics users, the motherboard offers a maximum resolution of 4096 x 2160 pixels, ideal for sharp and detailed display. The various USB connections, including USB Type-A and USB Type-C, provide fast and versatile connectivity options for all your peripherals.

The Gigabyte B650M D3HP is the perfect choice for those looking for a reliable and powerful motherboard that is ready for the future. Upgrade your system and experience the ultimate in performance and flexibility.

Specifications

Brand:
Gigabyte
Product number:
21408176
Product number manufacturer:
B650M D3HP

Audio

Audio output channels:
7.1 channels

BIOS

ACPI version:
5.0
BIOS memory:
256 Mbit
BIOS type:
UEFI AMI
Clear CMOS jumper:

Connectivity

DisplayPort version:
1.4
DisplayPorts:
2
HDMI ports:
1
HDMI version:
2.1
Headphone out:
3
LAN (RJ-45) ports:
1
Microphone port(s):
PS/2 ports:
1
USB 2.0 ports:
5
USB 3.1 (Gen 1) type A ports:
2
USB 3.1 (Gen 2) type A ports:
1
USB 3.1 (Gen 2) type C ports:
1

Expansion slots

PCI Express x1 slots:
1
PCI Express x16 slots:
1

Graphics

Number of displays supported:
3
Parallel processing technology support:
Not supported

Internal I/O

12V power connector:
ATX Power connector (24-pin):
CPU fan connector:
EPS power connector (8-pin):
Front panel audio connector:
M.2 ports:
2
SATA III connectors:
4
Serial port headers:
1
TPM connector:
USB 2.0 Headers:
2
USB 3.1 (3.1 Gen 2) connectors:
1
USB 3.1 (Gen 1) header(s):
1

Memory

Maximum memory:
192 GB
Memory channels support:
Dual-channel
Memory slots:
4
Memory slots type:
DIMM
Memory types supported:
DDR5-SDRAM
Non-ECC:
Supported memory clock speeds:
7600, 7200, 7000, 6800, 6600, 6400, 6200, 6000, 5600, 5200, 4800 MHz
Supported memory module capacities:
1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB
Unbuffered:

Networking

Network standard:
2.5 Gigabit Ethernet
Network technology (wired):
Wireless LAN (WiFi):

Packaging content

Cables included:
SATA

Physical characteristics

Depth:
244 mm
Height:
35 mm
Model:
micro ATX
Width:
244 mm

Processor

Compatible processor series:
AMD Ryzen™ 5, AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen
Processor socket:
Socket AM5

Technical details

Chipset:
AMD B650
DirectX version:
12.0
HDCP:

Video

Maximum resolution:
4096 x 2160 pixels
