Outlet: MSI PRO B660M-A WIFI DDR4
- Socket 1700
- Intel B660 chipset
- Micro-ATX form factor
- 2x M.2, WiFi 6, Bluetooth 5.2
This is an outlet-product:
New condition, without original packaging
New condition, without original packaging
174.99
142.27 excl. VAT
Only one in stock, expected delivery: 4 - 5 working days
Outlet: MSI PRO B660M-A WIFI DDR4
174.99
142.27 excl. VAT
Only one in stock, expected delivery: 4 - 5 working days
- Wide range of IT related products
- Low prices
- Fast and reliable delivery
- Order now, expected delivery: 4 - 5 working days
Pay later or
in 3 payments of € 58.33
in 3 payments of € 58.33

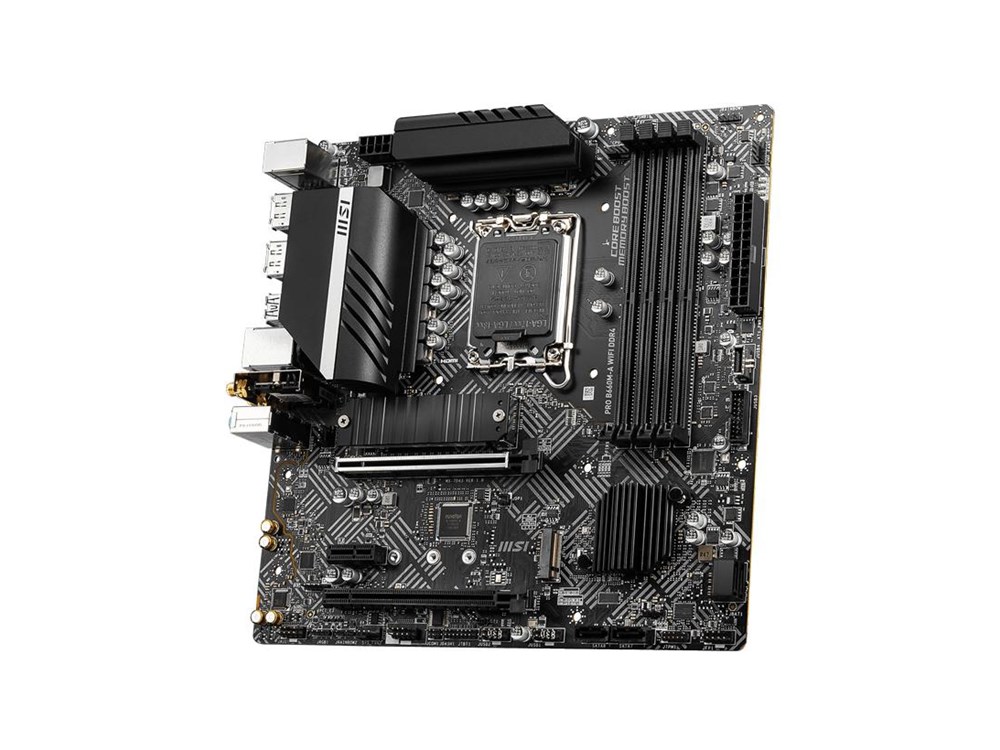

The MSI PRO B660M-A WIFI DDR4 is a Micro ATX motherboard built for reliable and capable desktop performance. Designed around the Intel B660 chipset and featuring an LGA 1700 processor socket, it is compatible with Intel Core i9 processors. The board supports up to 128GB of DDR4 memory across four DIMM slots in a dual-channel configuration, with a wide range of supported clock speeds from 2133 MHz up to 4800 MHz. Its compact dimensions of 244 x 244 mm make it well suited for space-conscious builds without compromising on functionality.
Connectivity and Expansion
The MSI PRO B660M-A WIFI DDR4 offers a comprehensive set of connectivity options. It includes two PCI Express x16 slots and one PCI Express 3.0 x1 slot for flexible expansion. Storage is handled through four SATA III connectors. On the rear panel you will find two HDMI ports and two DisplayPorts, supporting DirectX 12.0. USB connectivity includes two USB 3.1 Gen 2 Type-A ports, two USB 3.1 Gen 1 Type-A ports and two USB 2.0 ports, alongside internal headers for additional connections.
Wireless and Audio Capabilities
Networking is covered by a 2.5 Gigabit Ethernet port as well as built-in Wi-Fi 6 (802.11ax) support, covering a broad range of wireless standards. Bluetooth 5.2 is also integrated for wireless peripheral connectivity. Audio is powered by a Realtek ALC897 chip delivering 7.1 channel output, with a front panel audio connector included for added convenience.
Connectivity and Expansion
The MSI PRO B660M-A WIFI DDR4 offers a comprehensive set of connectivity options. It includes two PCI Express x16 slots and one PCI Express 3.0 x1 slot for flexible expansion. Storage is handled through four SATA III connectors. On the rear panel you will find two HDMI ports and two DisplayPorts, supporting DirectX 12.0. USB connectivity includes two USB 3.1 Gen 2 Type-A ports, two USB 3.1 Gen 1 Type-A ports and two USB 2.0 ports, alongside internal headers for additional connections.
Wireless and Audio Capabilities
Networking is covered by a 2.5 Gigabit Ethernet port as well as built-in Wi-Fi 6 (802.11ax) support, covering a broad range of wireless standards. Bluetooth 5.2 is also integrated for wireless peripheral connectivity. Audio is powered by a Realtek ALC897 chip delivering 7.1 channel output, with a front panel audio connector included for added convenience.
Brand:
MSI
Product number:
80071537
Product number manufacturer:
PROB660M-AWIFIDDR4
Audio
Audio chip:
Realtek ALC897
Audio output channels:
7.1 channels
BIOS
BIOS type:
EFI AMI
Clear CMOS jumper:
Connectivity
DisplayPorts:
2
HDMI ports:
2
LAN (RJ-45) ports:
1
USB 2.0 ports:
2
USB 3.1 (Gen 1) type A ports:
2
USB 3.1 (Gen 2) type A ports:
2
Expansion slots
PCI Express 3.0 x1 slots:
1
PCI Express x16 slots:
2
Graphics
Parallel processing technology support:
Not supported
Internal I/O
12V power connector:
ATX Power connector (24-pin):
CPU fan connector:
Front panel audio connector:
SATA III connectors:
4
TPM connector:
USB 2.0 Headers:
2
USB 3.1 (Gen 1) header(s):
1
Memory
Maximum memory:
128 GB
Memory channels support:
Dual-channel
Memory slots:
4
Memory slots type:
DIMM
Memory types supported:
DDR4-SDRAM
Non-ECC:
Supported memory clock speeds:
2133,2400,2666,2933,3200,3333,3400,3466,3600,3733,3800,4000,4200,4266,4400,4600,4800 MHz
Networking
Bluetooth:
Bluetooth version:
5.2
Network standard:
2.5 Gigabit Ethernet
Network technology (wired):
Wi-Fi standard:
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Wireless LAN (WiFi):
Packaging content
Cables included:
SATA
Drivers included:
Physical characteristics
Depth:
244 mm
Height:
86 mm
Model:
micro ATX
Width:
244 mm
Processor
Compatible processor series:
Intel® Core™ i9
Processor socket:
LGA 1700
Technical details
Chipset:
Intel B660
DirectX version:
12.0
