ASRock B650M PG Lightning
- Socket AM5
- AMD B650 chipset
- Micro-ATX format
- 4x DDR5
- 4x M.2
118.99
96.74 excl. VAT
In stock, expected delivery: 4 - 5 working days
ASRock B650M PG Lightning
118.99
96.74 excl. VAT
In stock, expected delivery: 4 - 5 working days
- Wide range of IT related products
- Low prices
- Fast and reliable delivery
- Order now, expected delivery: 4 - 5 working days
Pay later or
in 3 payments of € 39.66
in 3 payments of € 39.66
The ASRock B650M PG Lightning is a Micro-ATX motherboard designed for AMD processors, built around the AMD B650 chipset and featuring the Socket AM5 platform. It is compatible with AMD Ryzen 7000, 8000, and 9000 Series processors, making it a versatile choice for a wide range of builds. The board supports DDR5 memory across four DIMM slots, with a maximum capacity of 192 GB and clock speeds up to 4400 MHz, or beyond 7200 MHz with overclocking enabled.
Storage and Connectivity

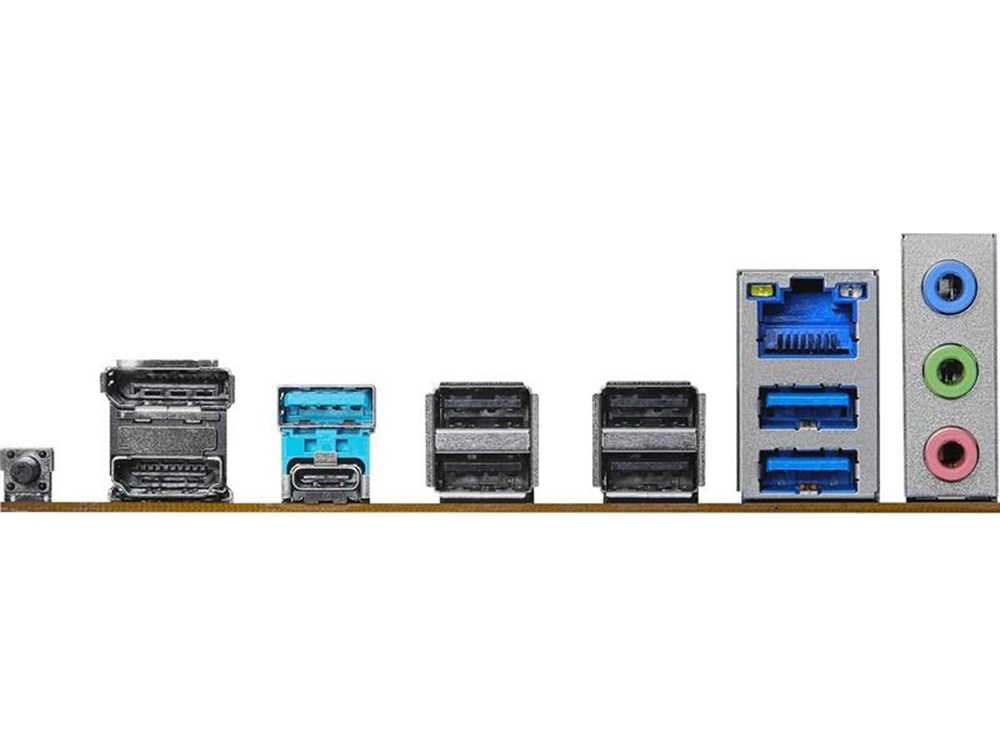

The ASRock B650M PG Lightning offers extensive storage and connectivity options. It includes four M.2 slots and four SATA III connectors, providing plenty of room for fast NVMe drives and traditional storage devices. On the connectivity side, the board features a generous USB layout, including USB 3.2 Gen 2 Type-A and Type-C ports, multiple USB 3.2 Gen 1 ports, and USB 2.0 connections. A Thunderbolt header is also present, along with a 2.5 Gigabit LAN port powered by the Dragon RTL8125BG controller for fast and stable wired networking.
Display and Audio
For display output, the board includes one HDMI 2.1 port and one DisplayPort 1.4, supporting resolutions up to 3840 x 2160 pixels. Audio is handled by the Realtek ALC897 chip, delivering 7.1 channel surround sound output. Three headphone output connections are available on the rear panel, making this board well suited for users who value clear and rich audio performance in their system.
Storage and Connectivity
The ASRock B650M PG Lightning offers extensive storage and connectivity options. It includes four M.2 slots and four SATA III connectors, providing plenty of room for fast NVMe drives and traditional storage devices. On the connectivity side, the board features a generous USB layout, including USB 3.2 Gen 2 Type-A and Type-C ports, multiple USB 3.2 Gen 1 ports, and USB 2.0 connections. A Thunderbolt header is also present, along with a 2.5 Gigabit LAN port powered by the Dragon RTL8125BG controller for fast and stable wired networking.
Display and Audio
For display output, the board includes one HDMI 2.1 port and one DisplayPort 1.4, supporting resolutions up to 3840 x 2160 pixels. Audio is handled by the Realtek ALC897 chip, delivering 7.1 channel surround sound output. Three headphone output connections are available on the rear panel, making this board well suited for users who value clear and rich audio performance in their system.
Brand:
ASRock
Product number:
21410503
Product number manufacturer:
90-MXBMV0-A0UAYZ
Audio
Audio chip:
Realtek ALC897
Audio output channels:
7.1 kanalen
BIOS
BIOS memory :
256 Mbit
BIOS type:
UEFI AMI
Connectivity
DisplayPort version:
1.4
DisplayPorts:
1
DVI-D ports:
0
HDMI ports:
1
HDMI version:
2.1
Headphone out:
3
LAN (RJ-45) ports:
1
USB 2.0 ports:
8
USB 3.2 (Gen 1) type A ports:
6
USB 3.2 (Gen 1) type C ports:
1
USB 3.2 (Gen 2) type A ports:
1
USB 3.2 (Gen 2) type C ports:
1
Expansion slots
PCI Express 3.0 x16 slots:
1
Internal I/O
12V power connector:
ATX Power connector (24-pin):
Chassis fan connector(s):
3
Chassis intrusion connector:
CPU fan connector:
EPS power connector (8-pin):
Front panel audio connector:
M.2 ports:
4
SATA III connectors:
4
Thunderbolt header (5-pin):
1
TPM connector:
USB 2.0 Headers:
2
USB 3.1 (3.1 Gen 2) connectors:
0
USB 3.1 (Gen 1) header(s):
3
Memory
ECC compatibility:
ECC & Niet-ECC
Maximum memory:
192 GB
Memory slots:
4
Memory slots type:
DIMM
Memory types supported:
DDR5
Supported memory clock speeds:
4400 MHz
Supported memory clock speeds (OC):
7200+ (OC) MHz
Unbuffered:
Networking
LAN controller:
Dragon RTL8125BG
Network standard:
2500 Mbps
Network technology (wired):
Wireless LAN (WiFi):
Packaging content
Cables included:
SATA
Physical characteristics
Colour of product:
Zwart
Depth:
244 mm
Height:
244 mm
Model:
Micro-ATX
Width:
244 mm
Processor
Compatible processor series:
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor family:
AMD
Sockets
Supported socket:
Socket AM5
Technical details
Chipset:
AMD B650
HDCP:
Video
Maximum resolution:
3840 x 2160 Pixels
